1

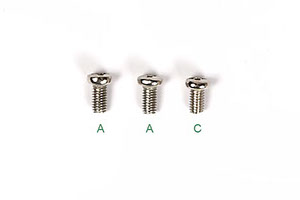

Pick 2 A screws and a C screw. Remark: A screw is little longer than C screw.
2

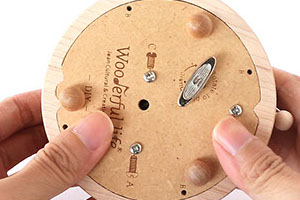

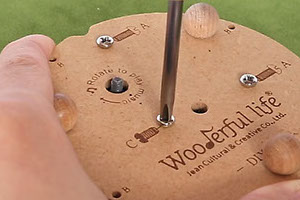

Follow instruction to put screws in proper place. Screw in half way until the screw is breaking through the board slightly.
3

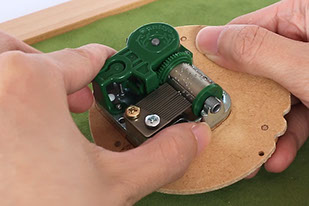

Follow instruction to put music movement in proper place.
4

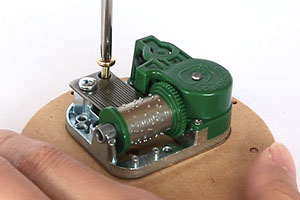

Tighten all screws.
5

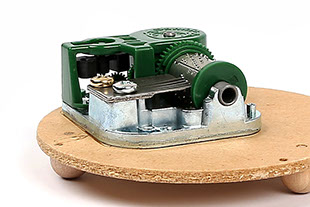

Make sure there is no gap between music movement and the board.
6
Turn the knob clockwise to check if music movement functions well.
7
Unscrew the Gold one.
8

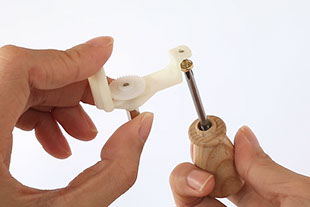

Screw the gold one in half way.
9

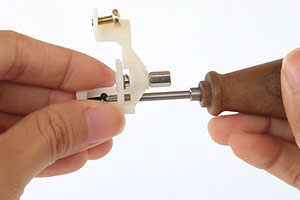

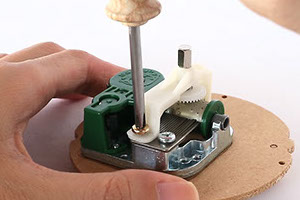

Use thin cross screwdriver. Screw the black one in half way.
10

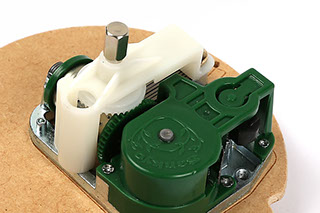

Insert the part into right pin.
11
Semi-screw the gold one. Do not tighten gold screw in this step.
12

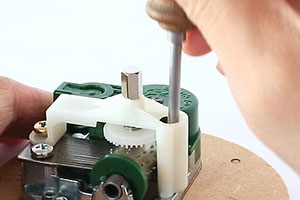

Use thin cross screwdriver. Screw the black one in half way.
13

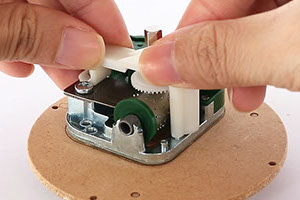

Connect two gears by slightly press the part. Then, tighten 2 screws.
14

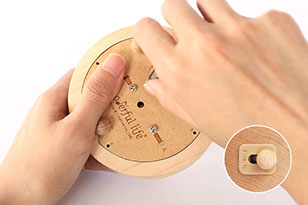

Follow the convex and concave mark. Put the board back to the base.
15
Make sure it is “ON” . Turn the knob to check if music movement functions well.
16

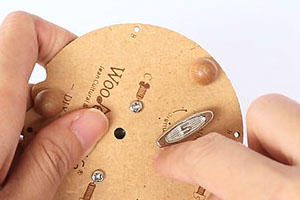

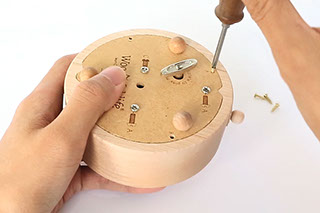

Use thin cross screwdriver. Tighten all B screws.
17

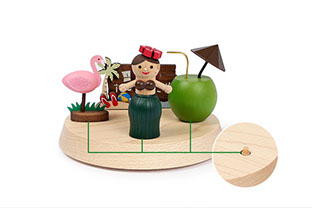

Let’s start the creation part. Spilling glue may block the hole and limit the function.
