1

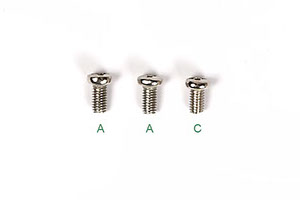

Pick 2 A screws and a C screw. Remark: A screw is little longer than C screw.
2

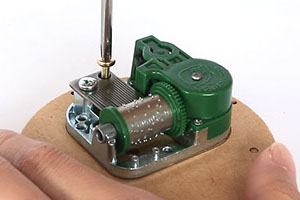

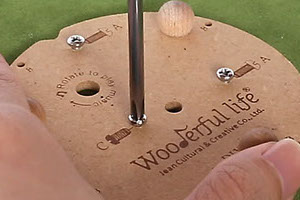

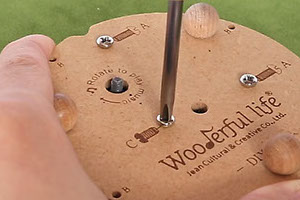

Follow instruction to put screws in proper place. Screw in half way until the screw is breaking through the board slightly.
3
Follow instruction to put music movement in proper place.
4
Tighten all screws.
5
Make sure there is no gap between music movement and the board.
6

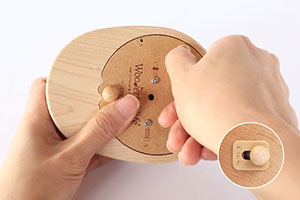

Turn the knob clockwise to check if music movement functions well.
7
Unscrew the Gold one.
8
Screw the gold one in half way.

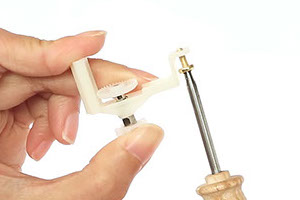

9

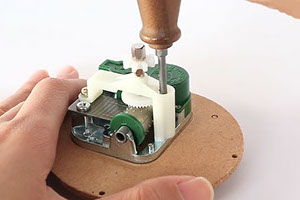

Use thin cross screwdriver. Screw the black one in half way.
10

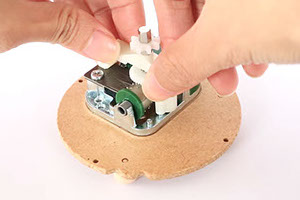

Insert the part into right pin.
11
Semi-screw the gold one. Do not tighten gold screw in this step.
12
Use thin cross screwdriver. Screw the black one in half way.
13

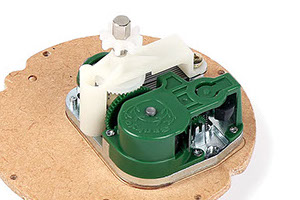

Connect two gears by slightly press the part. Then, tighten 2 screws.
14

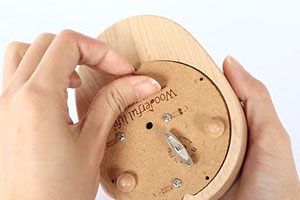

Follow the convex and concave mark. Put the board back to the base.
15
Center the gear, not too loose or tight .
16
Make sure it is “ON” . Turn the knob to check if music movement functions well.
17

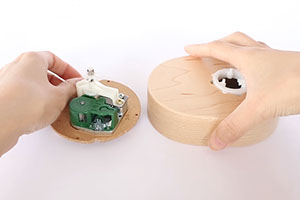

Take out the board and put aside. When assembling figures may leave wood dust, we suggest to fasten the board in the final step.
18

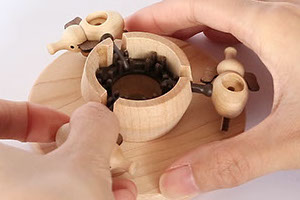

Click the elephant parts one by one
19
Let’s start the creation part.
20

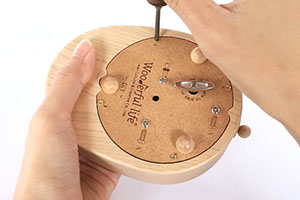

Follow the convex and concave mark. Put the board back to the base. Use thin cross screwdriver. Tighten all B screws.
21

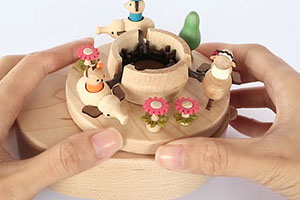

Insert the plate into base
22
Insert the rack into base
23
