1

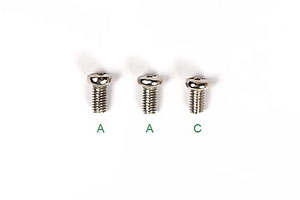

Pick 2 A screws and a C screw. Remark: A screw is little longer than C screw.
2

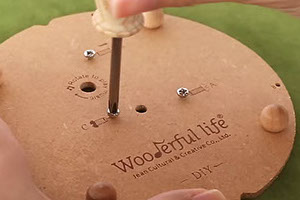

Follow instruction to put screws in proper place. Screw in half way until the screw is breaking through the board slightly.
3

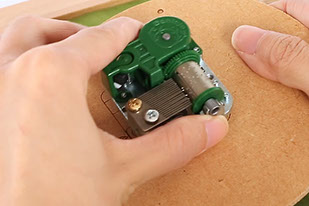

Follow instruction to put music movement in proper place.
4

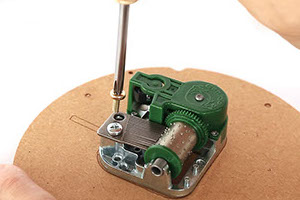

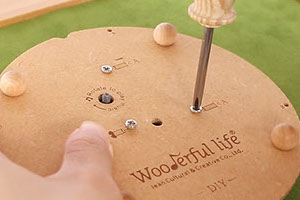

Tighten all screws.
5

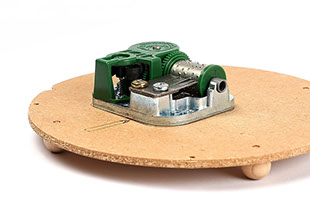

Make sure there is no gap between music movement and the board.
6

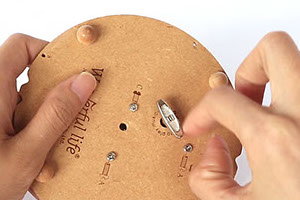

Turn the knob clockwise to check if music movement functions well.
7
Unscrew the Gold one.
8
Screw the gold one in half way.
9

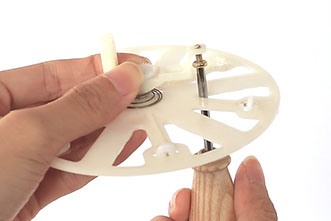

Use thin cross screwdriver. Screw the black one in half way.
10

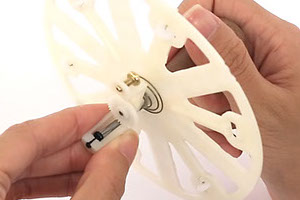

Insert the part into right pin.
11
Semi-screw the gold one. Do not tighten gold screw in this step.
12

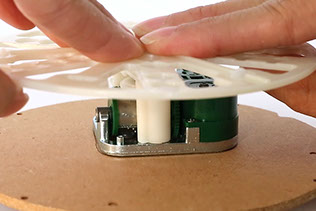

In order to separate the junction of 2 gears, raise the part slightly. Turn the plate to align two holes.
13

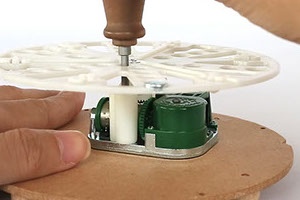

Semi-screw the black screw (F screw). Do not tighten black screw in this step.
14

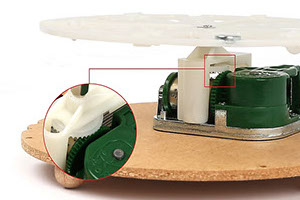

Connect two gears by slightly press the part. Then, tighten 2 screws.
15

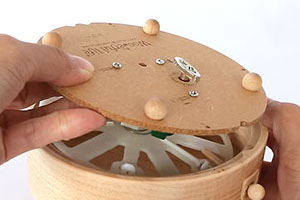

Follow the convex and concave mark. Slant the plate, then insert into the base.
16
Make sure it is “ON” . Turn the knob to check if music movement functions well.
17

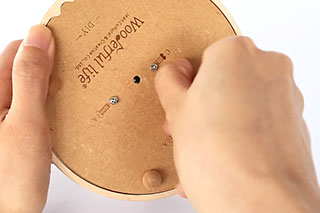

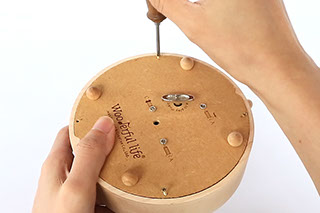

Use thin cross screwdriver. Tighten all B screws.
